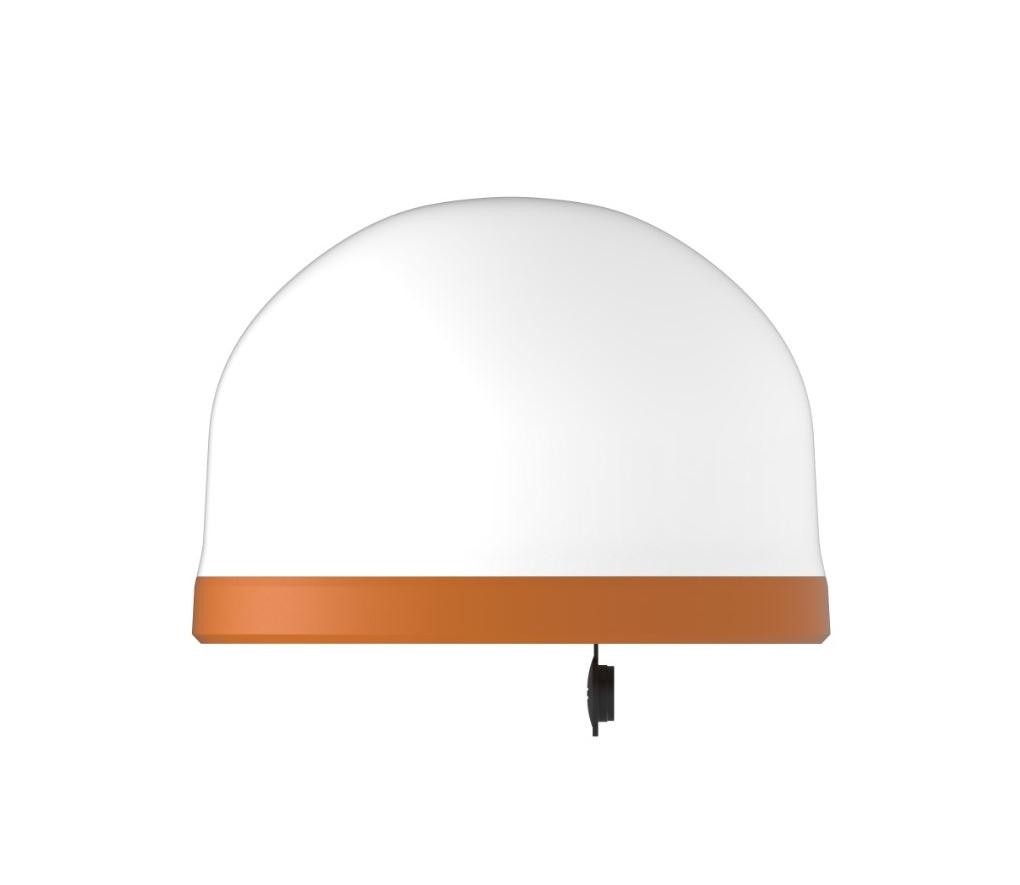

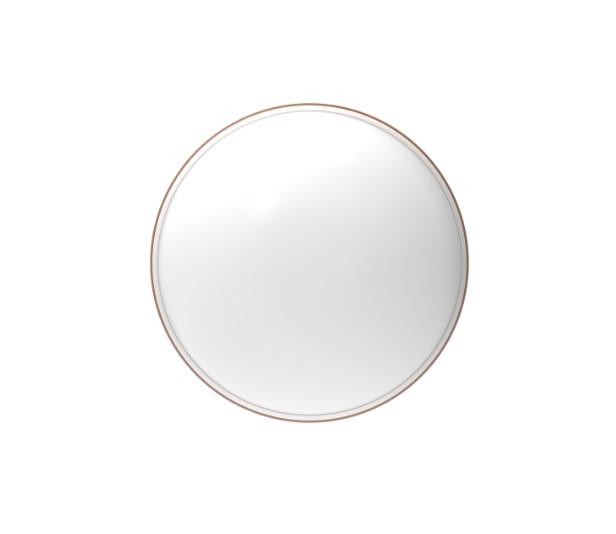

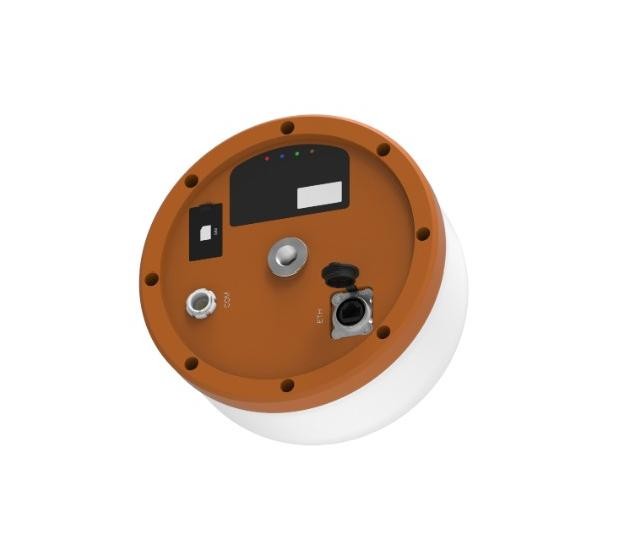

VR-HG-YTJ02

Product Description:

Specification

GNSS Channels 692 channels, 220 channels (optional)
GPS L1 C/A, L2E, L2C, L5
GLONASS L1 C/A, L1P, L2 C/A(GLONASS M only), L2P
BDS B1, B2, B3
GALILEO L1 BOC, E5A, E5B, E5AltBOC1
SBAS L1, L2C, L5
Initialization Typically<10 seconds
Initialization reliability >99.9%
Accuracy Code differential GNSS positioning Horizontal: 25cm+1ppm RMS
Vertical: 50cm+1ppm RMS
SBAS positioning accuracy <5m (typically) 3DRMS RMS
High precision static Horizontal: 2.5mm+0.1ppm RMS
Vertical: 3.5mm+0.4ppm RMS
Static GNSS surveying Baseline<30km Horizontal: 2.5mm+0.5ppm RMS
Vertical: 5mm+0.5ppm RMS
Static GNSS surveying Baseline>30km Horizontal: 4mm+0.5ppm RMS
Vertical: 9mm+0.5ppm RMS
Real-time Kinematic Baseline<30km Horizontal: 10mm+1ppm RMS
Vertical: 20mm·+1ppm RMS
Real-time Kinematic Network RTK Horizontal: 8mm+0.5ppm RMS
Vertical: 15mm+0.5ppm RMS
Data storage & output Data storage 8G (extend to 32G) internal memory is capable of cycle-recording raw data, adopts eMMC technology, stable and reliable
Positioning rate 1Hz, 2Hz, 5Hz, 10Hz, 20Hz, 50Hz(depend on setup option)
Reference output CMR, CMR+, RTCM2.1, RTCM2.2, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2, sCMRx, RTCA, NOVATELX
Navigation output ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS and binary
Data format Support STH, RINEX2.x, RINEX3.x raw data storage
Data retrieval Download form HTTP, FTP Push and USB copy
Data communication Ethernet protocol Support TCP/IP, HTTP and NTRIP protocol
Serial port Navigation data, static data and differential correction data transmission, PPS-UTC
Bluetooth Bluetooth 2.1 (Class2)+EDR, 2.4GHz
WiFi 2.4GHz, IEEE 802.11 b/g/n, allows to access built-in web user interface with the mobile terminal via its WIFI hotspot
Electrical Power supply 9V~28V DC input, 3 separate interfaces for power supply with over-voltage protection
Battery 10000mAh high capacity of battery built-in
Battery life More than 15 hours for continuous work in default configuration
Consumption Low power consumption 3.8W
User interface Front panel Front panel display with buttons and LED screen
Network interface Two RJ45 network interface
RS-232 serial One RS-232 serial port(9-pin), data transmission
USB Two USB port, USB host and USB device
Power interface Three separate power interface
Multi-function interface One port supports PPS output, Event marker input, serial port and power supply
External frequency port One external frequency scale port, supports high-precision atomic clock connection
GPS Antenna interface Choke ring antenna connection
WIFI antenna interface Allows to connect a WIFI broadcast antenna
Physical Dimension(L×W×H) 216mm×178mm×72mm
Weight 2.28kg
Shock and vibration Rugged aluminum alloy housing plus plastic ring seal, designed to survive a 2m drop onto concrete
Waterproof/Dustproof IP67 level standard, protect against for temporary immersion to a depth of 1m; Completely protect from dust
Environmental Storage temperature -40℃~+80℃
Working temperature -40℃~+75℃
Humidity Relative humidity, 10%-100%condensing

Note: all information above is subject to change without any prior notice.
