mosaic-X5 development kit

mosaic-X5 development kit

Try our GNSS module receiver today

* Complete multi-frequency, multi-constellation GNSS receiver: GPS, GLONASS, Galileo, BeiDou, QZSS
* Precise and reliable cm-level RTK positioning with signal health and integrity indicators
* Best-in-class anti-interference, anti-jamming, anti-spoofing technology: Advanced Interference Monitoring and Mitigation (AIM+)
* Industry leading ultra-low power consumption
* Easy-to-integrate, designed for high volume automated assembly
* Footprint compatible and scalable with the entire mosaic series modules
* High update rate: up to 100 Hz
* Comes with intuitive web UI for easy operation & monitoring from any mobile device or computer

Septentrio mosaic-X5 is Septentrio's most compact high-precision GPS/GNSS high-precision GNSS module, delivering best-in-class centimeter-level positioning performance even in challenging environments. It's a multi-band, multi-constellation GPS/GNSS receiver in a low power surface mount module. It is designed for mass market applications like robotics and autonomous systems  supporting all current and future GNSS satellite signals. Unique built-in AIM+ technology for interference mitigation, ensures the best availability, reliability and precision.

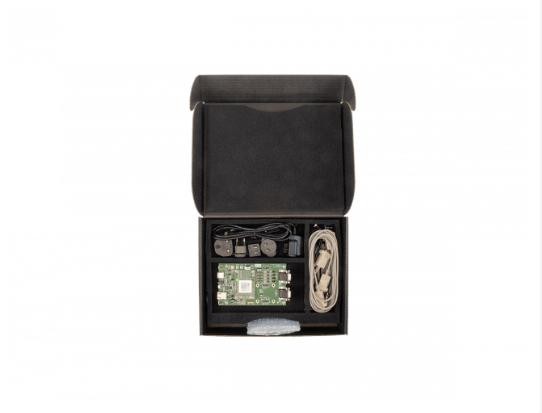

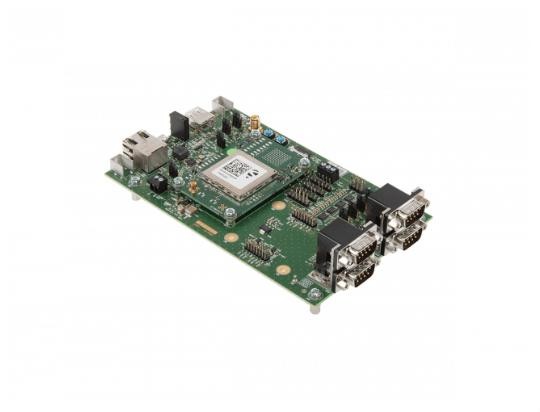

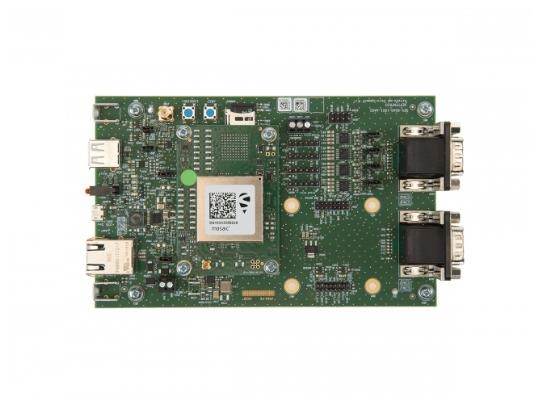

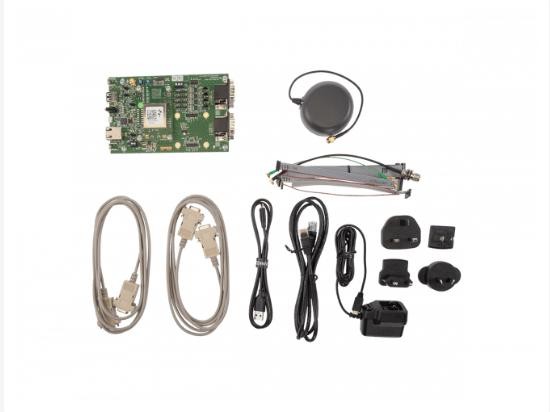

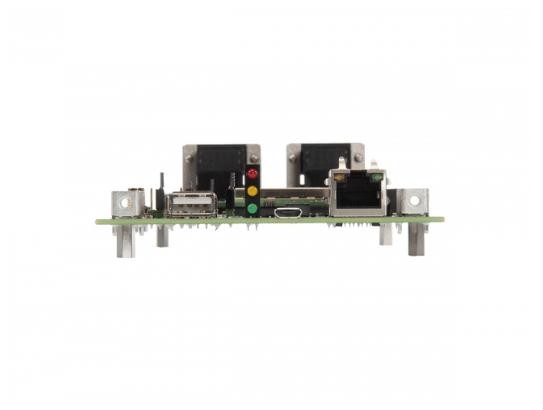

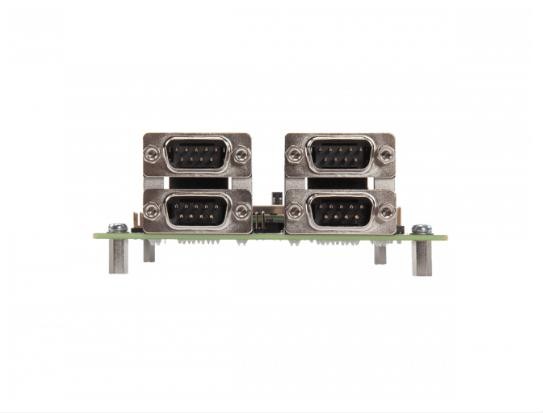

The development kit offers the possibility to discover and play with the mosaic. Create a prototype by integrating the mosaic dev-kit into your system using any of the of following connections: internet, COM ports, USB 2.0, SD memory card.

Buy your mosaic-X5 dedicated development kit today

The GNSS+ Technologies - Top performance in challenging environments
Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.

Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth,  the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.

Metal and large nearby structures can reflect GNSS signals and produce multipath. The APME+ system effectively disentangles direct and reflected signals enhancing both position and measurement quality. APME+ is bias free and, in line with Septentrio’s commitment to maximum configurability, can be disabled.

Interference robustness

The mosaic-x5 high precision module receiver features also the industry-leading Septentrio's AIM+ technology, the most advanced on-board interference and spoofing mitigation technology on the market. It can suppress the widest variety of interferers, from simple continuous narrowband signals to the most complex wideband and pulsed jammers. The radiofrequency (RF) spectrum can be viewed in real-time in both time and frequency domains.

Easy-to-integrate

mosaic-X5 comes with fully-documented interfaces, commands and data messages. The included RxTools software allows receiver configuration, monitoring as well as data logging and analysis.

Intuitive web user interface

The mosaic-X5 module includes an intuitive web user interface for easy operation and monitoring allowing you to control the receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during the job at hand.
