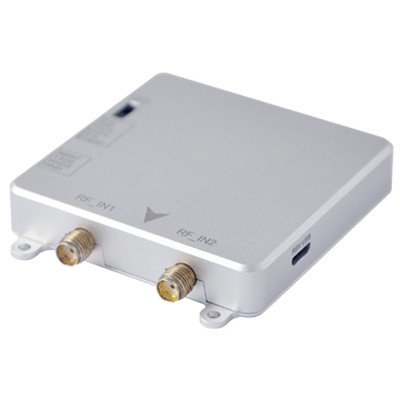

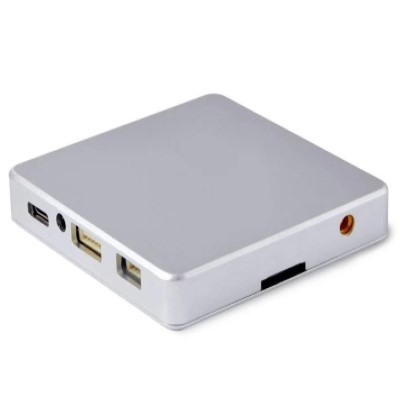

Simple Mosaic GNSS Box

Home Products Simple Mosaic GNSS Box H DK

H DK

H DK

H DK

Product Item : URJMSHDK
Category： Simple Mosaic GNSS Box
GNSS Core: Septentrio mosaic H
Specials: AIM+/IONO+/APME+
Dimension: 59mm(W) ×71mm(L) × 12mm(H)
INQUIRY EMAIL

Product Description:

Specification

GNSS technology

GPS: L1C/A, L2P, L2C
GLONASS: L1C/A, L2C/A
BeiDou: B1I, B2I, B3I
Galileo: E1, E5b
QZSS: L1C/A, L1C/B, L2C
GNSS heading

Septentrio patented GNSS+ technologies

AIM+ Advanced Interference Monitoring and Mitigation More info

Interfaces

UART (LVTTL, up to 4 Mbps)	4
Event markers More info	2
RTK performance More info	centimetre
Horizontal accuracy More info	0.6 cm
Vertical accuracy More info	1 cm

Velocity

Velocity accuracy More info	3 ns

Tags: UAV Autopilot GNSS Receiver
