mosaic-CLAS

Product Description:

mosaic-CLAS

GNSS module with PPP-RTK corrections for Japan

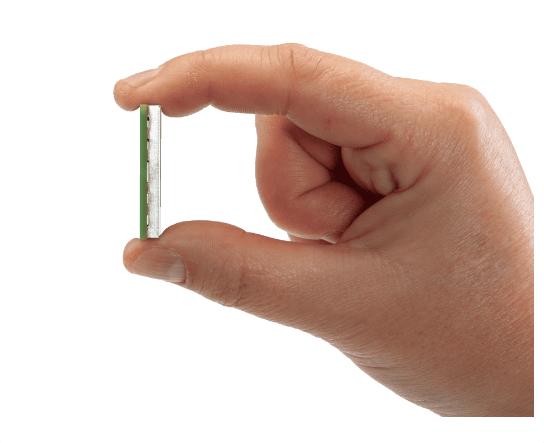

* Small size, big performance
* Multi-constellation, multi-frequency including L6 CLAS support
* Best-in-class RTK performance
* AIM+ unique interference monitoring and mitigation system + advanced other GNSS+ algorithms
* Industry-leading ultra-low power consumption
* Easy-to-integrate

* Japan's Centimeter Level Augmentation Service (CLAS) integrated

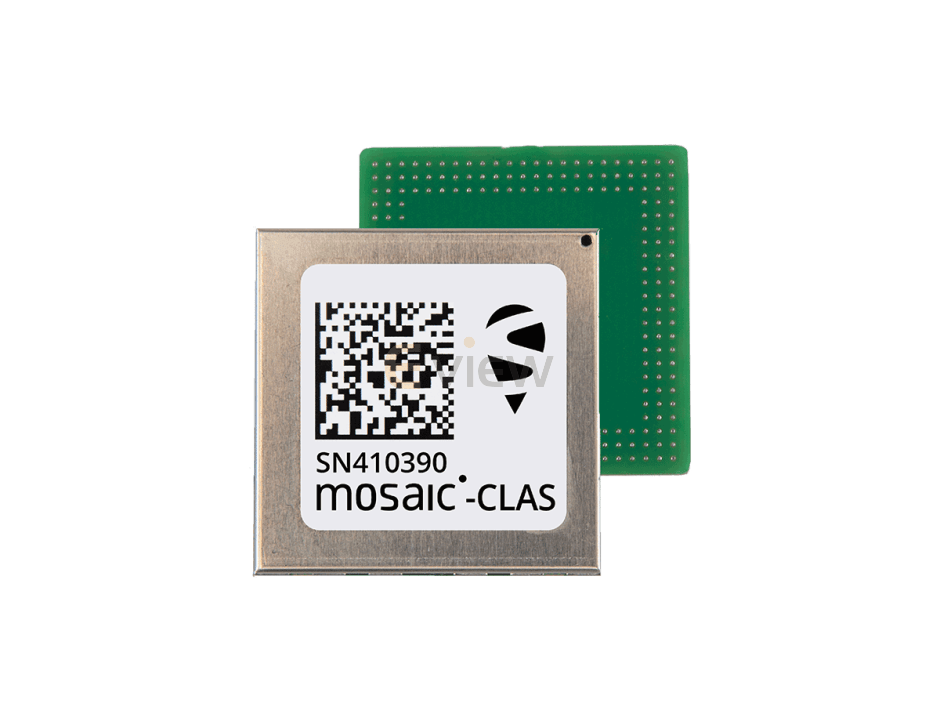

Septentrio mosaic-CLAS is a multi-constellation GNSS receiver packaged in a low-power surface mount module. With a wide array of interfaces, mosaic-CLAS has been specifically designed for the needs of mass market applications like robotics and autonomous systems. This highly reliable, multi-frequency module supports the dedicated L6 signal enabling convenient plug-and-play sub-decimeter accuracy thanks to the integrated PPP-RTK correction service: Centimeter Level Augmentation Service (CLAS) provided by Japan’s Quasi-Zenith Satellite System (QZSS, aka Michibiki).


The GNSS+ Technologies - Top performance in challenging environments


Mechanical vibrations or shocks caused by rough terrain can wreak havoc with satellite tracking. LOCK+ automatically adjusts the parameters of this receiver so you never lose position.

Activity in the ionosphere is a problem for GNSS signals, from loss of RTK fix to total loss of signal lock. Having honed our skills, supporting applications in the most iono-active areas on Earth,  the result is IONO+: the most advanced protection against ionospheric disturbances to GNSS signals on any receiver.

Metal and large nearby structures can reflect GNSS signals and produce multipath. The APME+ system effectively disentangles direct and reflected signals enhancing both position and measurement quality. APME+ is bias free and, in line with Septentrio’s commitment to maximum configurability, can be disabled.

Advanced Receiver Autonomous Integrity Monitoring (RAIM+) comprises fault detection mechanisms of the receiver at all the levels including the generation of measurements, quality control and navigation algorithms. Detected faulty measurements, which are typically caused by high multipath or active ionosphere, are removed from the solution.

AIM+ anti-jamming and RF spectrum monitoring system


AIM+ offers built-in protection against intentional and unintentional jamming using a sophisticated system of sampling and mitigation mechanisms. Your high-precision GNSS receiver can automatically suppress the widest variety of interferers from simple continuous narrow-band signals to the more complex wide band and pulsed transmitters as well as lnmarsat and Iridium satellite transmissions
