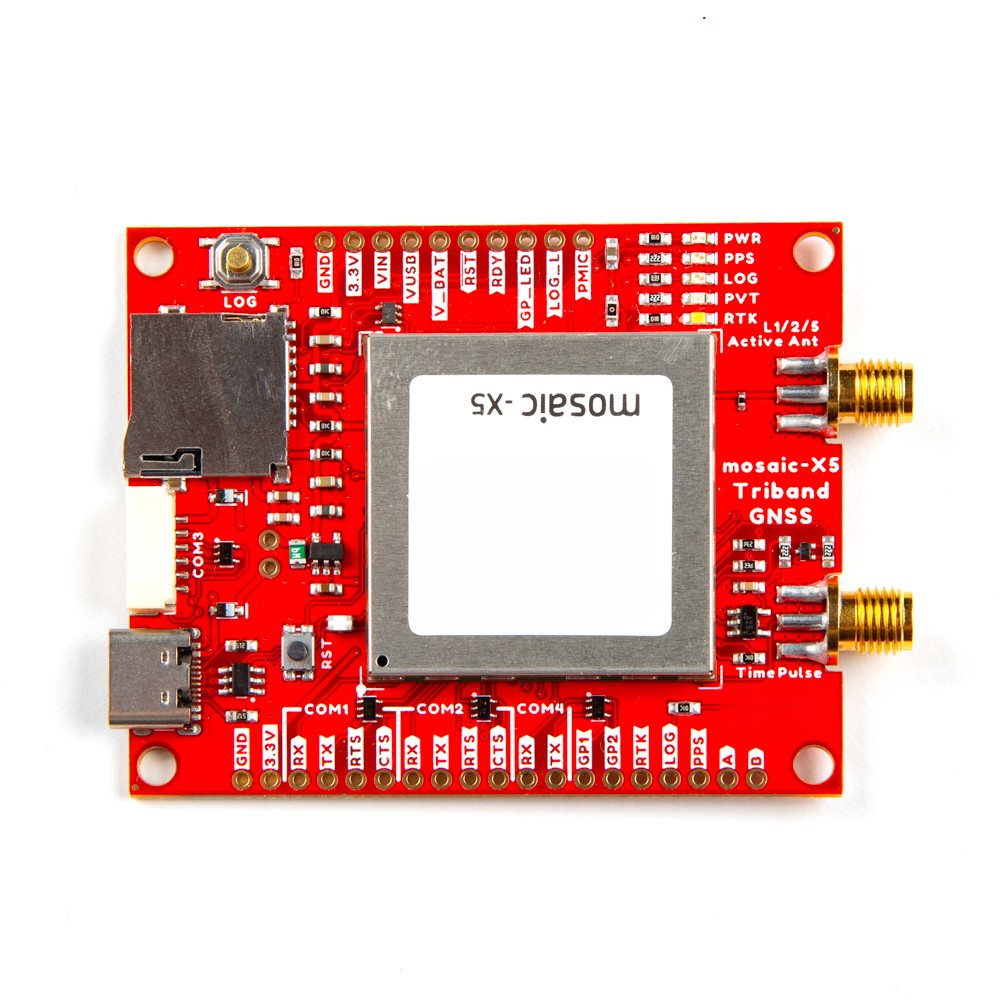

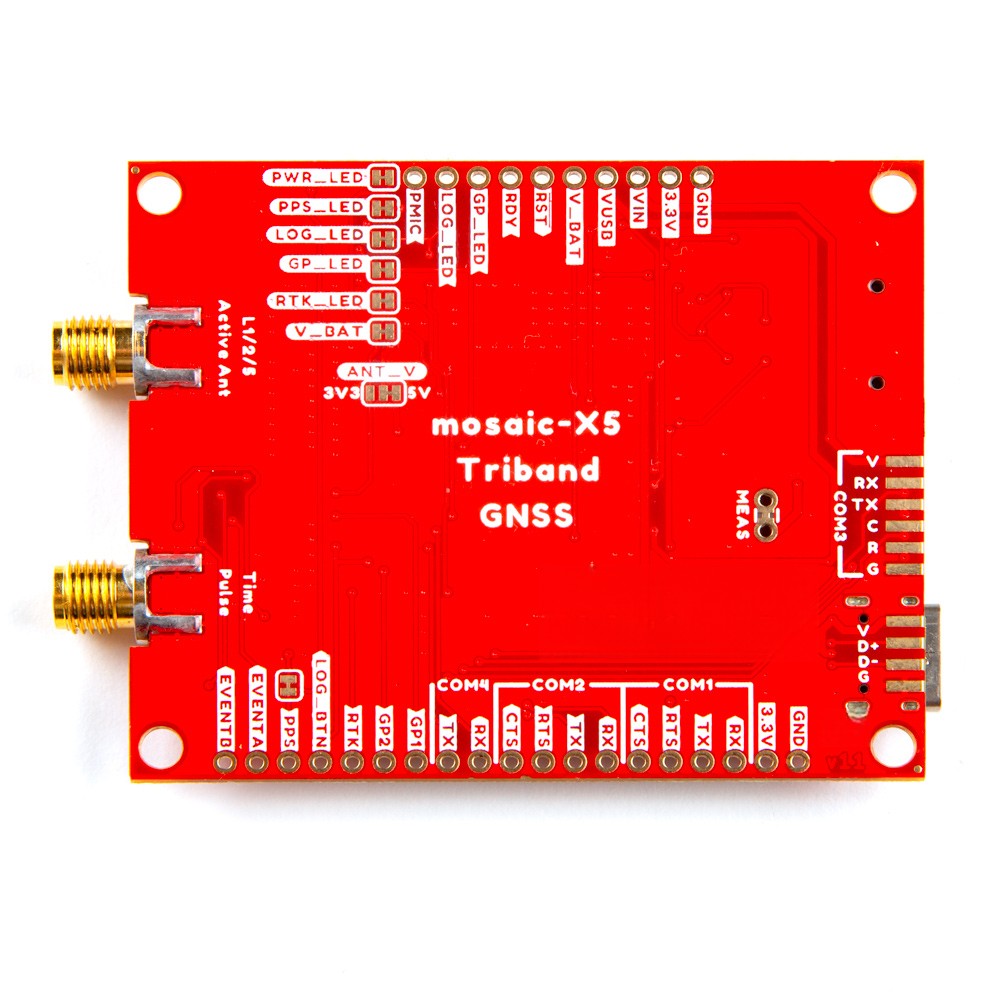

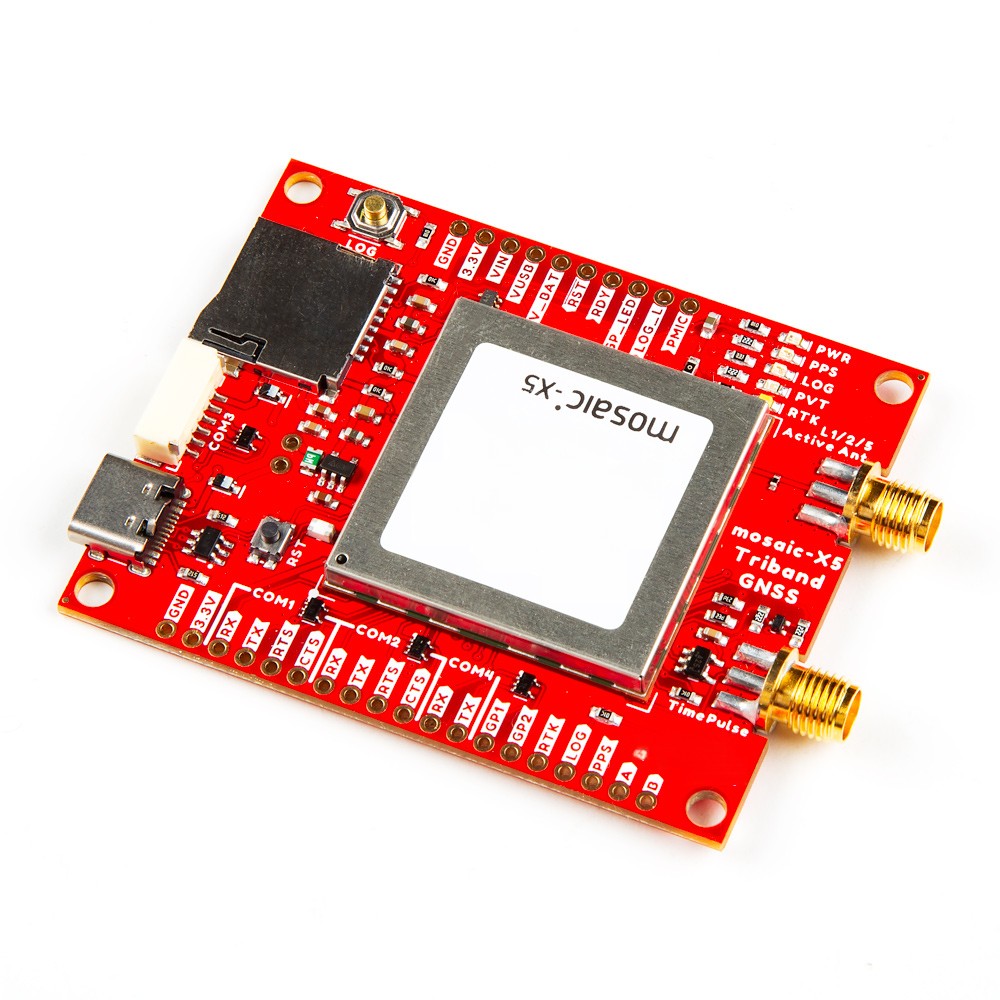

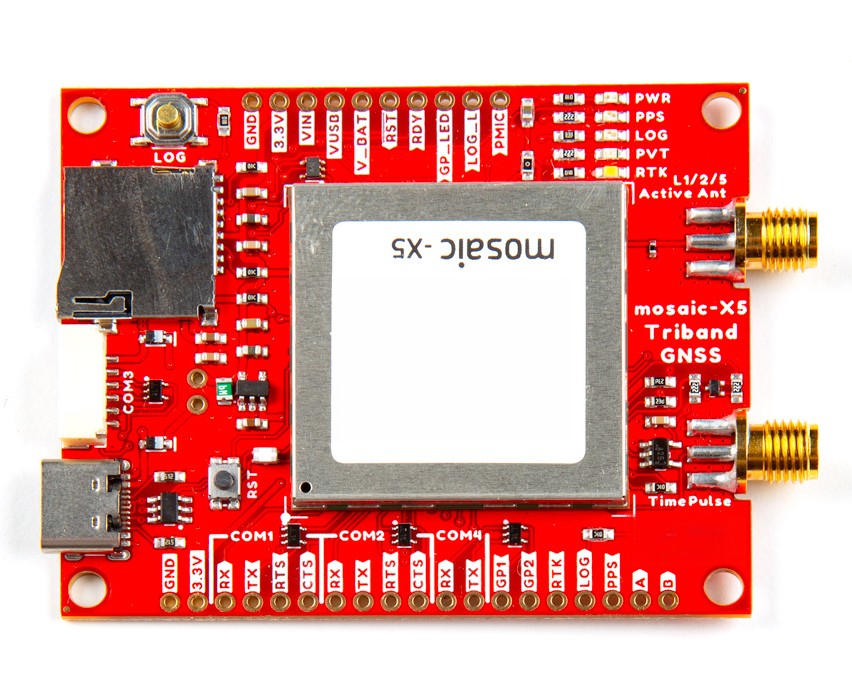

Triband GNSS RTK Breakout - mosaic-X5

Product Description:

Description

  • Mosaic-X5 Triband GNSS RTK breakthrough, you will get the simplest way to use L1, L2, and L5 frequency bands simultaneously! The core breakthrough of the Triband GNSS RTK is the most compact and high-precision GNSS receiver Mosaic-X5 from Septentrio.
  • The Mosaic-X5 module is an ultra-low power, multi band, multi constellation global navigation satellite system receiver that can provide centimeter level accuracy with high update rates. The receiver supports GPS (USA), GLONASS (Russia), Beidou (China), Galileo (Europe), and NavIC (India) constellations, including regional systems (i.e. SBAS and QZSS).
  • The Mosaic-X5 features Septentrio's unique AIM+technology for interference suppression and anti spoofing, ensuring first-class reliability and scalable positional accuracy.
  • With its Real Time Kinematics (RTK) function, the Mosaic-X5 module can broadcast RTK correction data as a base station or use RTK correction information as a rover to record positions with extremely high accuracy. This module can achieve a horizontal accuracy of 6mm (~0.25in), a vertical accuracy of 1cm (~0.4in), and a timing accuracy of 5ns (5 billionths of a second) using RTK.
  • The Mosaic-X5 is compatible with RTK calibration data from various third-party services. The mosaic X5 can also provide 100Hz (100 times per second) position updates for automotive and industrial applications.
  • The Mosaic-X5 is a complex chip that runs on an internal network server and can be accessed through a Linux/Windows computer via USB interface and standard browser.
  • Septentrio also provides dozens of video tutorials that guide users through the network interface to complete the configuration settings of the global navigation satellite system receiver.
  • The configuration of the Mosaic-X5 module can be achieved through the software package provided by Septentrio, where users can post processing recorded data and analyze receiver performance or GNSS signals for interference/deception. Septentrio's GNSS module can be compatible with other third-party software packages.
  • In addition to the functions of the Mosaic-X5 module, this board can operate seamlessly without the need for programming skills.
  • Mosaic-X5 Triband GNSS RTK Breakout can start/stop recording data by simply pressing a button. The same button can also load and unload SD cards onto your computer through a USB interface. Users can control/configure modules, log data, etc. without the need for a single line of code
  • The mosaic X5 module can be integrated into the project/casing through the available pins on this adapter board, similar to the development toolkit of Septentrio, but requires evaluation of the smaller shape of the toolkit when used.

SPECIFICATIONS

Triband GNSS RTK Breakout:

  • mosaic-X5 GNSS Receiver
  • USB-C Connector
  • µSD Card Slot (up to 32GB w/ FAT32 file system)
  • SMA Connectors:

  1. GPS Antenna (Active, Multi-band)
  2. PPS Output (3.3V)

  • Status LEDs

  1. Power (Red)
  2. Pulse-Per-Second (Yellow)
  3. Data Logging (Green)
  4. Position/Velocity/Time Solution (Blue)
  5. RTK Mode (White)

  • Buttons

  1. Log
  2. Reset

  • I/O Logic-Level: 3.3V
  • 6-pin JST GH connector (GHR-06V-S)

  1. Polarized
  2. Locking

  • ESD Protection Diodes

mosaic-X5 Module:

  • Voltage Range: 3.135 to 3.465V

  1. Max current: 500mA

  • RTK Accuracy

  1. Horizontal: 0.6cm (±0.5ppm)
  2. Vertical: 1cm (±1ppm)

  • GNSS Support

  1. GPS: L1C/A, L1PY, L2C, L2P, L5
  2. GLONASS: L1CA, L2CA, L2P, L3 CDMA
  3. Beidou: B1I, B1C, B2a, B2b, B2I, B3
  4. Galileo: E1, E5a, E5b, E5 AltBoc, E6
  5. QZSS: L1C/A, L1 C/B, L2C, L5
  6. NavIC: L5
  7. SBAS: Egnos, WA

  • Time to Fix

  1. Cold Start: < 45s
  2. Warm: < 20s
  3. Reacquisition: 1s

  • Timing Precision: 5ns
  • Update Rate: 100Hz
  • Latency: < 10ms
  •  Voltage Range: 3.0 to 5.0V

  1. Max current: 150mA

  • Interfaces:

  1. UART (x4)
  2. Ethernet (Not available for this product)
  3. USB 2.0
  4. SD Card
  5. GPIO/LEDs
