Product Description:

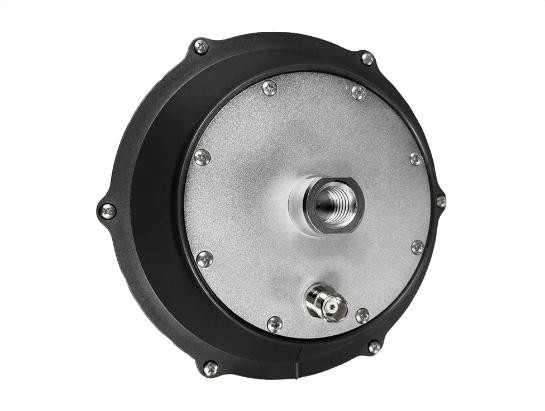

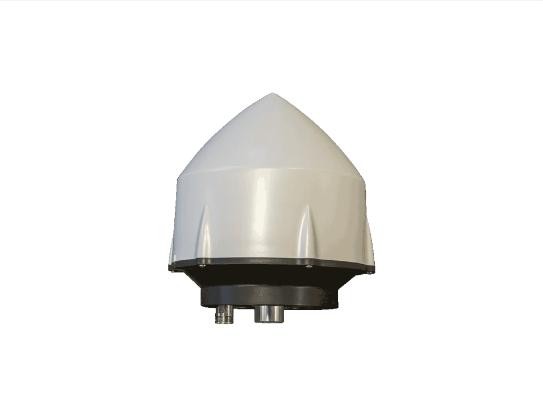

Veraphase 6000

High-Precision Full GNSS Spectrum Antenna


* Low axial ratios from horizon to horizon

* Very Tight Phase Center Variation (<1 mm / 0.03 in)

* Low current (45mA)

* Invariant performance from: +2.7 to 24 VDC

* IGS and NGS calibration


The patented VeraPhase® 6000 antenna, powered by Tallysman, is a full GNSS spectrum antenna including L-band for correction services. It has excellent performance (gain, axial ratio, PCV, and PCO) across the full bandwidth. It provides the lowest axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies.

The VeraPhase provides high-reception gain over the full GNSS spectrum and has a robust pre-filtered Low Noise Amplifier (LNA), with high third order intercept point (IP3) to minimize de-sensing from high-level out-of-band signals, including 700 MHz LTE, while still providing a low noise figure.

The VeraPhase has been calibrated by GEO++ and the type mean calibration files are available in the IGS and NGS databases.
