1. Specification
GNSS Performance |
|||||
Product model |
RB3 |
|
|||
GNSS Board |
Septentrio AsteRx-m3 Pro+ |
|
|||
Channel |
544 channels |
|
|||
Signal Tracking |
GPS: L1 C/A, L1C, L2C, L2 P(Y), L5
GLONASS: L1 C/A, L2C/A, L3, L2P
BeiDou: B1I, B1C, B2a, B2b, B2I, B3I
Galileo: E1, E5a, E5b
QZSS: L1 C/A, L1C/B, L1C, L2C, L5
SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM
Integrated L-band receiver |
|
|||
Update rate |
100HZ |
|
|||
Fist positioning time |
Cold start < 45 s
Warm start < 20 s |
|
|||
Signal recapture |
avg. 1 s |
|
|||
RTK Accuracy |
Horizontal: 0.6 cm + 0.5 ppm
Vertical: 1 cm + 1 ppm |
|
|||
Single point positioning accuracy |
|
|
|||
Direction accuracy |
Antenna separation 1m, heading 0.15°, Pitch/Roll 0.25°
Antenna separation 5m, heading 0.03°, Pitch/Roll 0.05° |
|
|||
SBAS accuracy |
Horizontal: 0.6m
Vertical: 0.8m |
|
|||
DGPS accuracy |
Horizontal: 0.4m
Vertical: 0.7m |
|
|||
Pseudo-range accuracy |
|
|
|||
Timing accuracy |
|
|
|||
Data Record |
|||||
Storage |
Internal memory 32GB |
||||
Format of output data |
NMEA0183、RTCMV2.x/V3.2/V3.3、Rinex v3.04/v2.11/etc. |
||||
Differential format |
ROX, RTCM2.x, RTCM3.x, CMR, CMR+ |
||||
Network |
Support simultaneous network transmission processes up to 2~4 |
||||

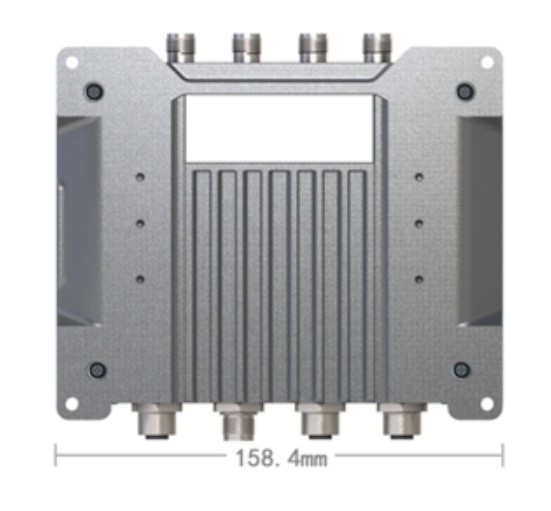

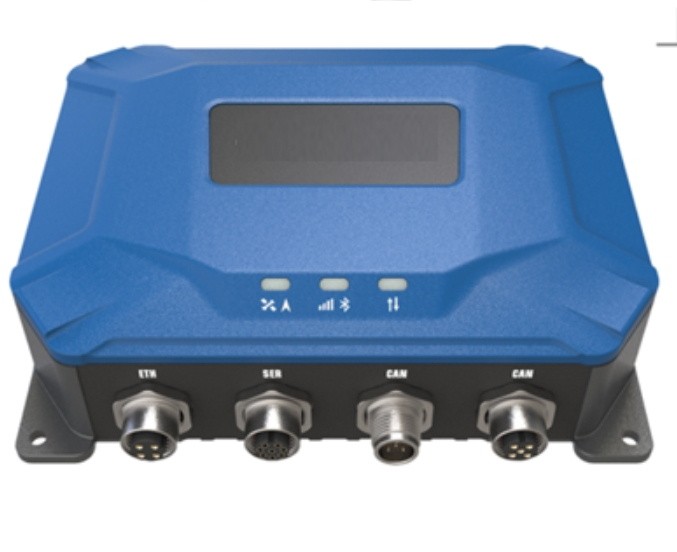

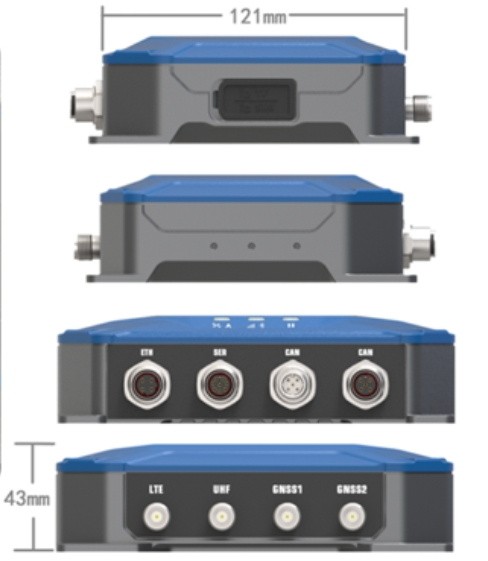

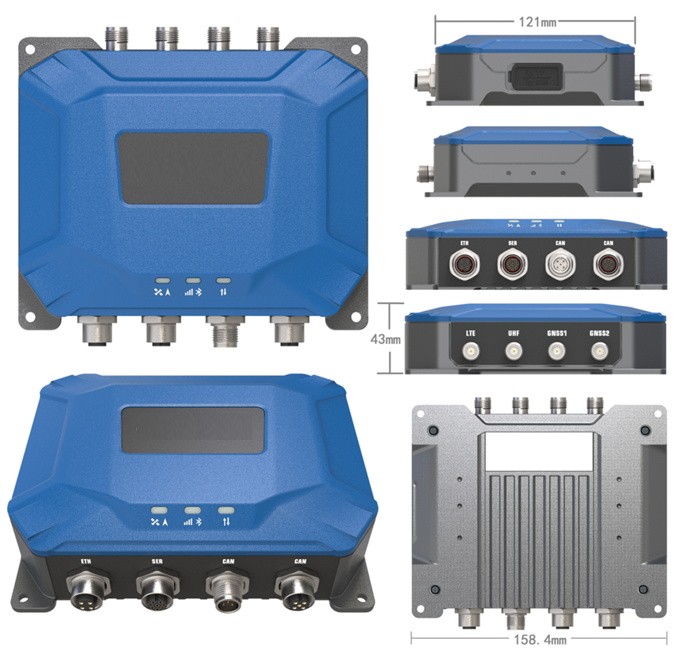

Interface |
|||||
CAN(PWR) |
M12 |
||||
CAN(PWR) |
M12 |
||||
SER |
M12 |
||||
Ethernet |
M12 |
||||
UHF |
TNC connector |
||||
GPRS |
TNC connector |
||||
SIM |
YES (micro) |
||||
TF card |
YES (micro) |
||||
GNSS |
GNSS1: TNC, the main external GNSS antenna
GNSS2: TNC,the secondary external GNSS antenna |
||||

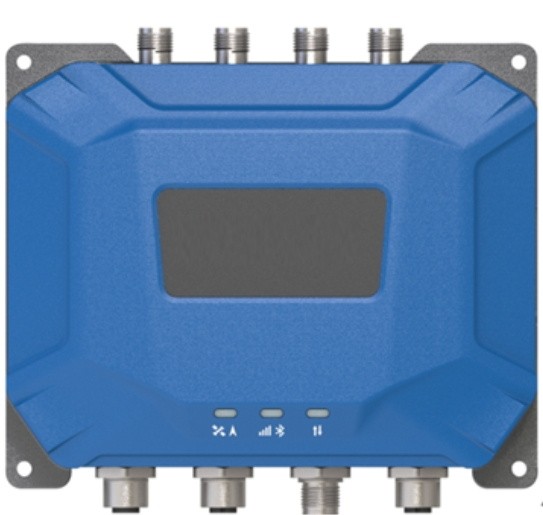

Indicator |
|||||
No. |
Indicator |
Color |
Function |
||
1. |
Position/Heading |
red/green |
Satellites (Green)
l Green: Fixed solution
l Flash green: other solution
l Green off: without positioning
Heading (Red)
l Red with heading
l Red off: without heading |
||
2. |
4G/Bluetooth |
red/green |
Bluetooth(green)
l Green off: Bluetooth is disconnected
l Green on: Bluetooth is connected
4G(red)
l Flash red: Network is abnormal
l Red on: Network is normal
l Red off: Disable 4G |
||
3. |
Differential data |
red/green |
Transmitting data (green)
l Solid green: when there is data transmitting over the 4G interface
l Flashing green: when there is data transmitting over the radio module
Receiving data(red)
l Solid red: when there is data receiving over the 4G interface
l Flashing red: when there is data receiving over the radio module |
||
System |
|||||
Operating system |
Linux A7 |
||||
B/T |
BT 5.0 EDR downward compatibility,LE |
||||
WIFI |
802.11b/g |
||||
4G LTE |
Full Netcom communication module |
||||
Ethernet |
100M |
||||
UHF |
TRM101 HDSC |
||||
TX/RX data transmission transceiver
TX Power: 1 Watt
Frequency range: 410MHz – 470MHz |
|||||
Network |
|||||
NTRIP |
Caster/Server/Client |
||||
Onsite management |
Support Bluetooth Settings, serial port, WiFi Settings, with Android management APPs |
||||
Remote management |
Configure via Web page;one dedicated remote management software for device |
||||
Network management |
Provide network connection functions such as Intranet penetration, VPN, OpenVPN, and dynamic domain name, etc.. |
||||
Safety |
HTTP log in HTTPS/SSL |
