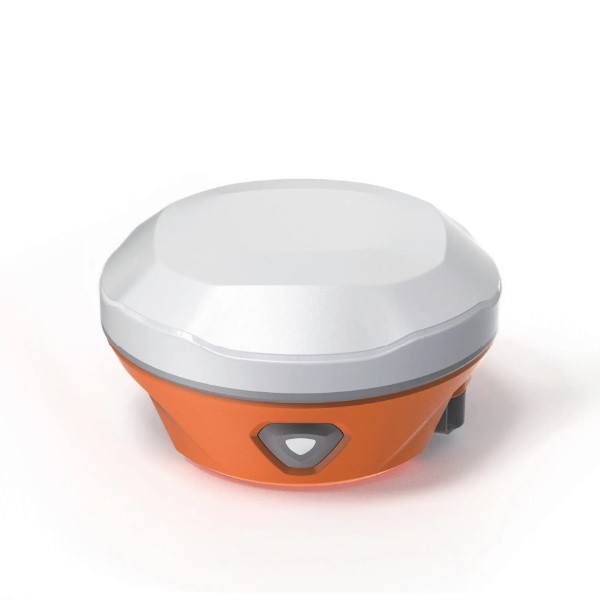

GNSS receiver A9

SPECIFICATIONS

• A9 is a state-of-the-art GNSS receiver that merges industrial-leading inspiring ideas and technologies, offering an efficient and productive sollution to no matter amateur or professional.
• A9 is capable to track enormous signals of all constellations with stunningly fast fixing speed even under thick cover of trees or beside tall buildings. Cooridinates will be examined twice to ensure an utmost accuracy.
• When you are quite away from the point, the controller shows you the general direction to the point. Untill you are steps away from the point, the controller will shift to to the camera beneath the receiver seaminglessly and shows a more accurrate guidance to the point.
• No need for calibration. No need for initialization. In a few seconds after getting fixed, you are in the tilt collecting mode. Just tip the pole end to the point at any pose withini 60°, press Collect, and you are free to go to next point.
• Thanks to the 2W internal UHF Rx/Tx radio featured with high efficiency and low power consumption, A9 provides a safe and stable datalink with a super long distance up to 15km.
• A9 adopts high-performance Septentrio GNSS moduel, the mosaic-X5. It is accessible to not only our own WebUI, but also Septentrio’s official WebUI.Moreover, A9 allows to store .sbf file to internal memory or computer via Wi-Fi connection.

SATELLITE PERFORMANCE

Channels 1,760

GPS L1C/A, L2C, L2P(Y), L5L1, L2

GLONASS L1, L2

BEIDOU B1l, B2l, B3l, B1C, B2a, B2b

GALILEO E1, E5a, E5b, E6

QZSS L1, L2, L5, L6

SBAS L1, L5

L-Band B2b PPP

Positioning Rate 1-20Hz

ACCURACY

Code Differential H: 0.40m (RMS)     V: 0.80m (RMS)

Static H: 2.5mm±0.5ppm (RMS)    V: 5mm±0.5ppm (RMS)

Real-time Kinematic H: 8mm±1ppm (RMS) V: 15mm±1ppm (RMS)

Network PPK H: 3mm±1ppm (RMS) V: 5mm±1ppm (RMS)

IMU MEASUREMENT

Tilt Angle Maximum 60°

Accuracy 2cm

DATA STORAGE

Type & Storage SSD 8GB  External USB Pen drive

Data Tranfer Type-C USB Transfer Supports FTP/HTTP download

Differential Format RTCM 2.1, RTCM 2.3, RTCM 3.0,RTCM 3.1, RTCM 3.2,

NMEA 0183,PJK plane coord., binary code, Trimble GSOF

GPS Output Format VRS, FKP, MAC

Network Model Ntrip fully supportable

CAMERA

Optical Format 1/5 inch

Pixel Size 1.75*1.75μm

Active Pixel Array 1616*1232

Sensor 2 mega CMOS imaging sensors

COMMUNICATION

I/O Type-C (OTG+Fast Charge+Ethernet)

Antenna Port All-in-one port for radio/GPRS antenna

Network Modem Nano-SIM card LTE FDD, LTE TDD, UMTS, GSM

UHF Radio 2W Tx/Rx 410-470MHz

Protocol S-link, TrimTalk, Hi-target, SOUTH, CHC 802.11b/g/n

WiFi Hotspot/Data Link Bluetooth 2.1 + EDR and 4.0

Bluetooth Available

NFC

INTERFACES

Button Data Link, Satellite, Bluetooth, Power

LED Indicator

POWER SUPPLY Internal Li-on Battery

Battery 3.6V, 6,800mAh Static mode 20h

Operating Time Rover mode 15h

PHYSICAL 75mm(H), 132mm (W)

Dimension 740g

Weight -30°C to 65°C

Operating Temp. -30°C to 65°C

Storage Temp. IP68 water and dust proof

Proof 2m drop on hard surface 40G 10ms sawtooth wave
