simpleRTK3B mPCIe

Product Description:

Description

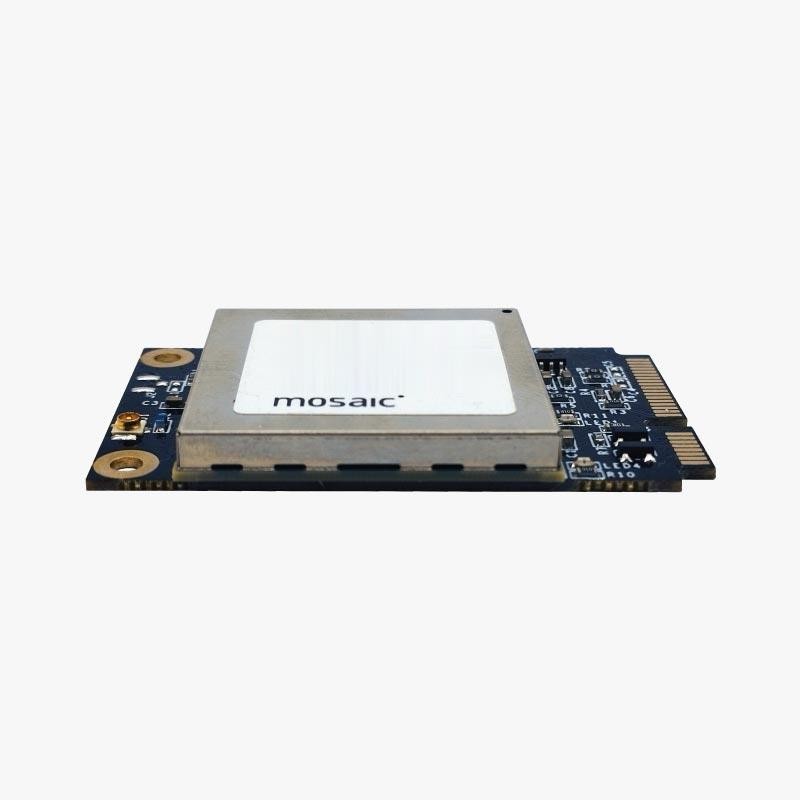

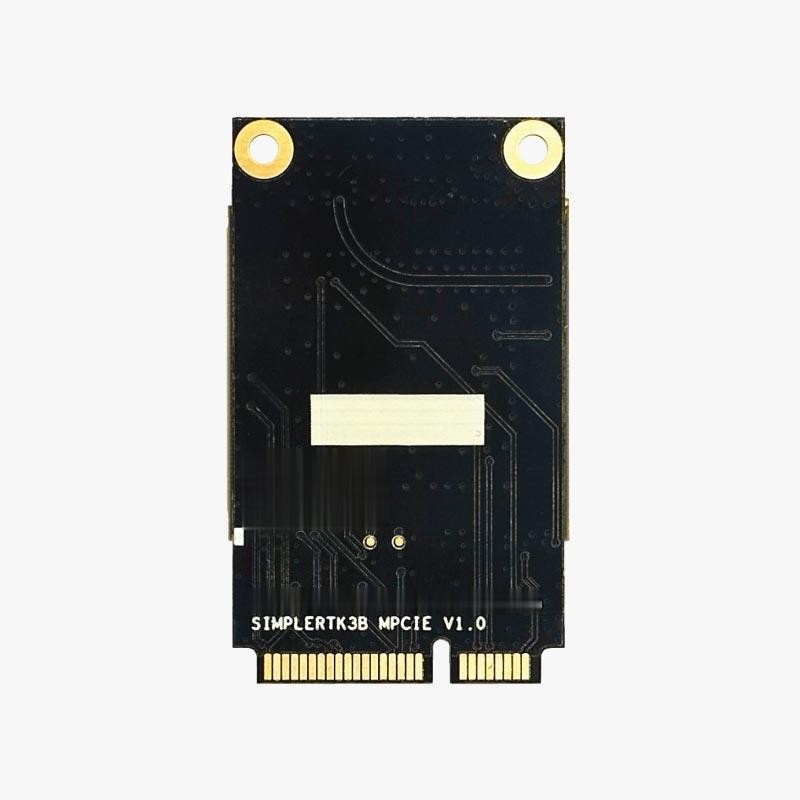

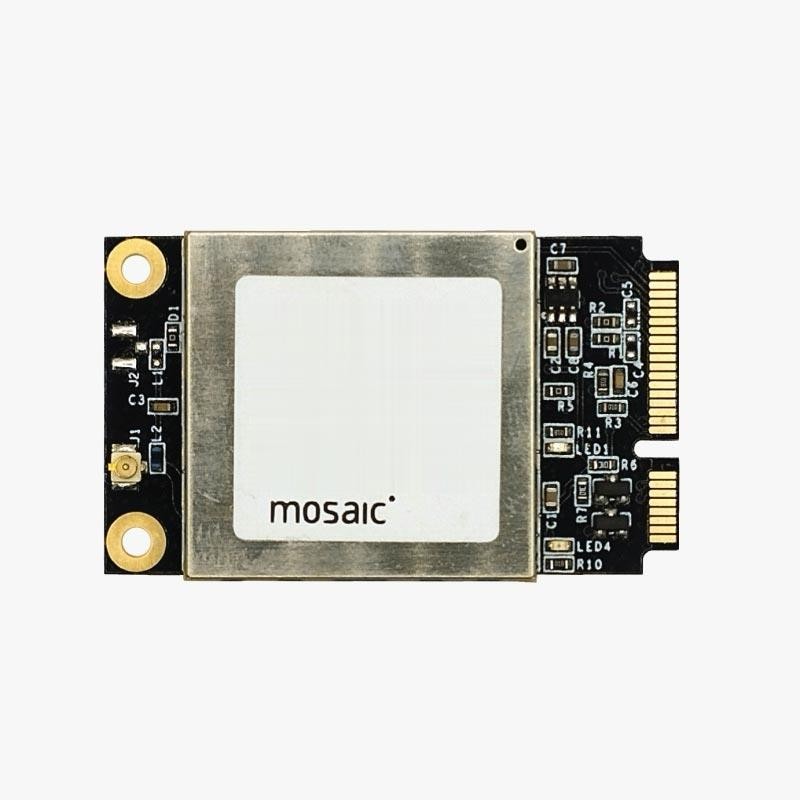

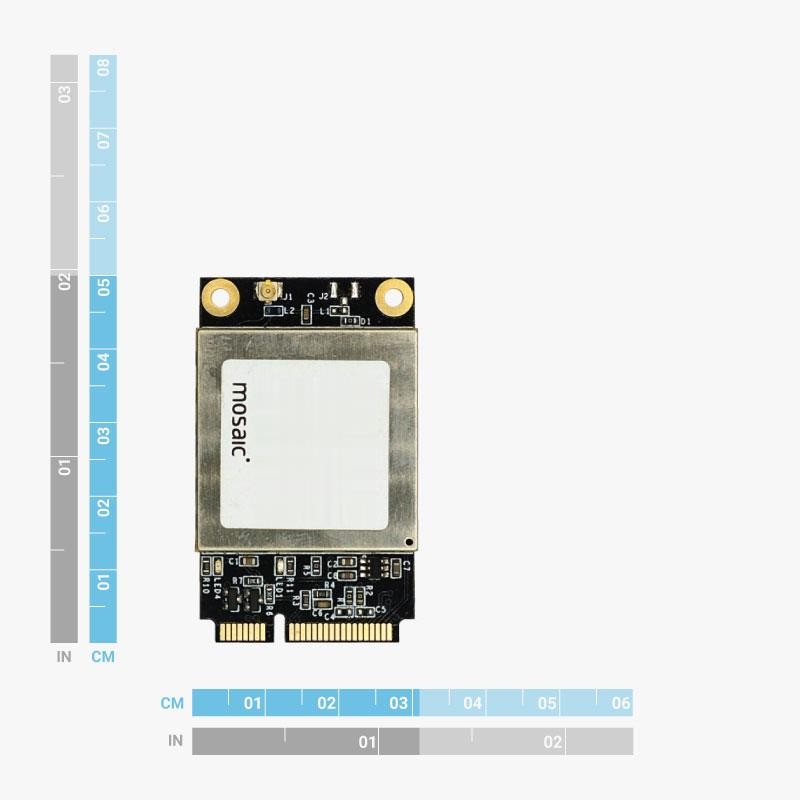

Introducing a cost-effective yet highly accurate RTK GNSS positioning solution tailored for Mini PCI Express platforms. This board, fully compatible with MiniPCIe full-size sockets, leverages the advanced Septentrio Mosaic technology.

Key Points:

  • To connect it to our Multiband GPS/GNSS antennas, you'll require a uFL to SMA pigtail adapter.
  • Bulk pricing is available starting from 50 units, making it an even more economical choice for larger deployments.
  • This product can serve as a Triple-Band MiniPCIe Upgrade Card, enhancing the capabilities of your MobileCM Dual-Band GNSS Base-Station (Space Weather Station).

Specifications

Mosaic-X5 features

  • Millimeter level precision
  1. <1cm with a base station up to 35km
  2. <1cm with NTRIP up to 35km
  3. <1.2m in standalone mode
  4. <0.6m standalone with SBAS coverage
  • Update rate
  1. Default: 1Hz
  2. With maximum performance: up to 100Hz
  • Multi band: L1, L2 and L5 support, 448 hardware channels
  • Multifrequency and Multiconstellation:
  1. GPS: L1C/A L1PY L2C L2P L5
  2. GLONASS: L1CA L2CA L2P L3 CDMA
  3. Galileo: E1 E5a E5b E5 AltBloc E6
  4. BeiDou: B1I B1C B2a B2I B3
  5. QZSS:  L1C/A L2C L5
  6. Navic: L5
  7. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)
  • Start-up times:
  1. Cold start: <45s
  2. Warm start: <20s
  3. Re-acquisition: 1s
  • Protocols:
  1. Septentrio Binary Format (SBF)
  2. NMEA 0183, v2.3, v3.03, v4.0
  3. RINEX v2.x, v3.x
  4. RTCM v2.x, v3.x (MSM included)
  5. CMR v2.0 (out/in), CMR+ (input only)
  • Interfaces (check product documentation to verify which are available):


  1. USB
  2. UART
  3. XBee
  4. Timepulse
  5. Event



  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS
