simpleRTK3B Heading

Description

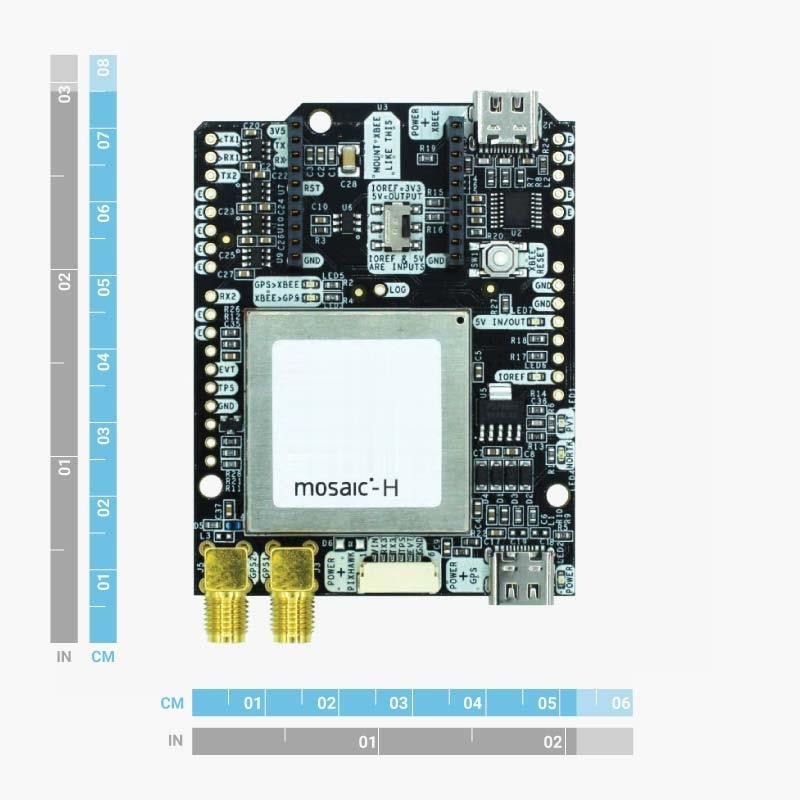

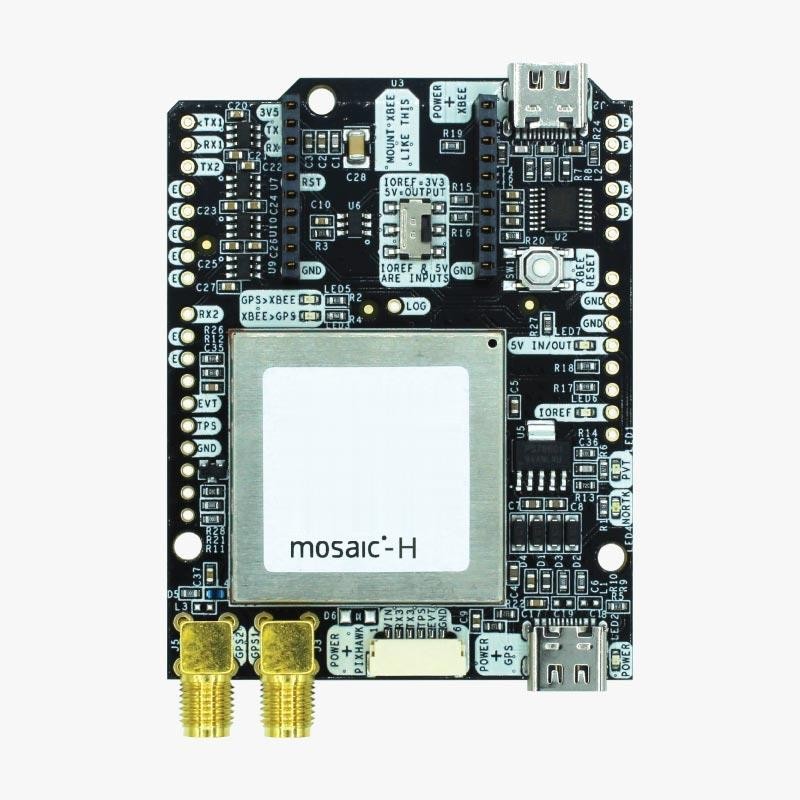

simpleRTK3B Heading is a standalone board designed to evaluate dual-band RTK GNSS technology, delivering centimeter-level positioning accuracy along with heading and microSD datalogging capabilities. Built around the Septentrio mosaic-H module, it can operate independently or as a shield for platforms such as Arduino, Raspberry Pi, Nvidia Jetson Nano, and STM32 Nucleo. This allows for up to 20 RTK positions and attitude (heading) measurements per second. This board is particularly suited for advanced projects utilizing the Pixhawk autopilot.

Key Points:

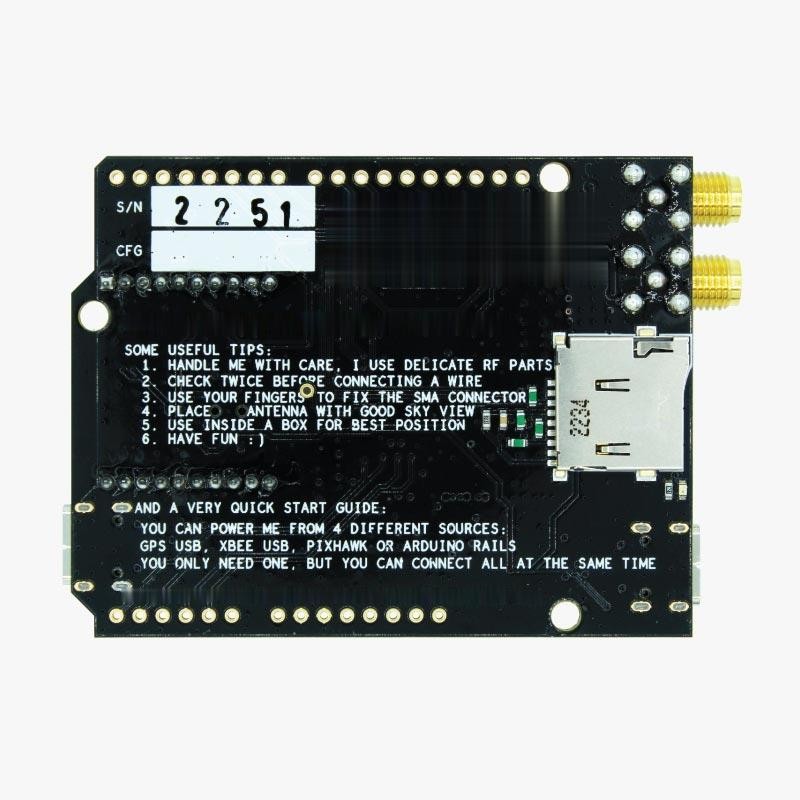

• It includes a native microSD card datalogger, but the microSD card is not included.
• Compatibility is assured, but two multiband GNSS antennas are required for operation.
• Standard GNSS antennas will not yield optimal performance; an L1/L2/E5b antenna is recommended.
• This board is recommended for evaluating the performance of the Septentrio mosaic-H module.
• Configured primarily as a Rover, it can also be utilized as a Base Station.
• It is compatible with the entire range of Ardusimple XBee socket accessories, including 4G modems, MR/LR/XLR radios, Bluetooth, WiFi, Ethernet, dataloggers, and RS232 interfaces.
• It is also compatible with Ardusimple's plastic case for additional protection.
• It is Ardupilot compatible via a JST-GH standard connector, facilitating easy integration.
• Product Codes:

1. AS-RTK3B-MH-L1L2-NH-00
2. AS-RTK3B-MH-L1L2-HS-00

Specifications

Mosaic-H features

• Millimeter level precision

1. <1cm with a base station up to 35km
2. <1cm with NTRIP up to 35km
3. <1.2m in standalone mode
4. <0.6m standalone with SBAS coverage

• GNSS attitude accuracy

1. 1m antenna separation: 0.15deg heading, 0.25deg pitch/roll
2. 5m antenna separation: 0.03deg heading, 0.05deg pitch/roll

• Update rate

1. Default: 1Hz
2. Measurements only: up to 100Hz
3. Standalone, SBAS, DGPS + attitude: up to 50Hz
4. RTK+attitude: up to 20Hz

• Multi band: L1, L2 and E5b support, 448 hardware channels
• Multifrequency and Multiconstellation:

1. GPS: L1 L2
2. GLONASS: L1 L2
3. Galileo: E1 E5b
4. BeiDou: B1 B2
5. QZSS:  L1 L2
6. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)

• Start-up times:

1. Cold start: <45s
2. Warm start: <20s
3. Re-acquisition: 1s

• Protocols:

1. Septentrio Binary Format (SBF)
2. NMEA 0183, v2.3, v3.03, v4.0
3. RINEX v2.x, v3.x
4. RTCM v2.x, v3.x (MSM included)
5. CMR v2.0 (out/in), CMR+ (input only)

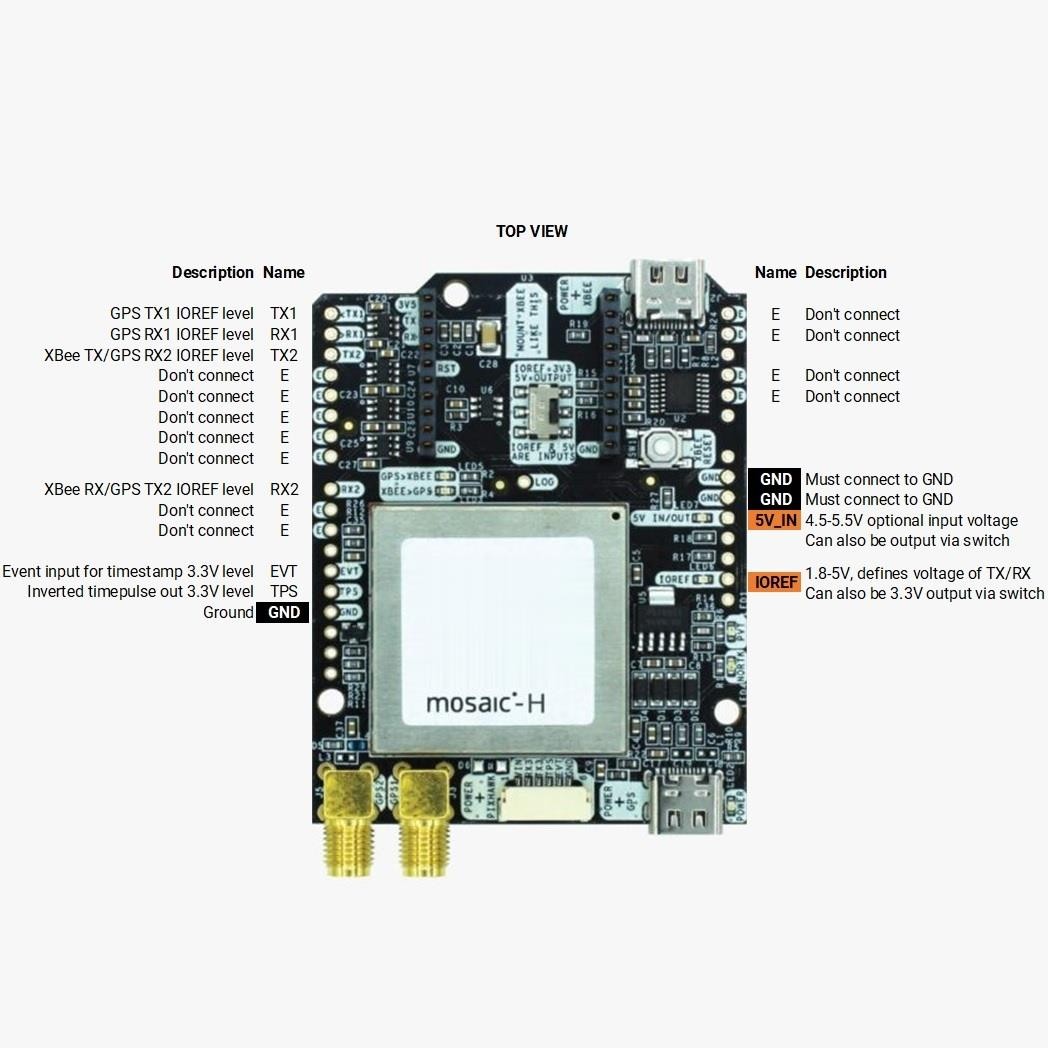

• Interfaces (check product documentation to verify which are available):

1. USB
2. UART
3. XBee
4. Timepulse
5. Event

• Base and Rover functionality
• Operating temperature Range: -40 to +85deg
• Certification: CE, WEEE, ISO 9001-2015
• Documentation: RED, RoHS
