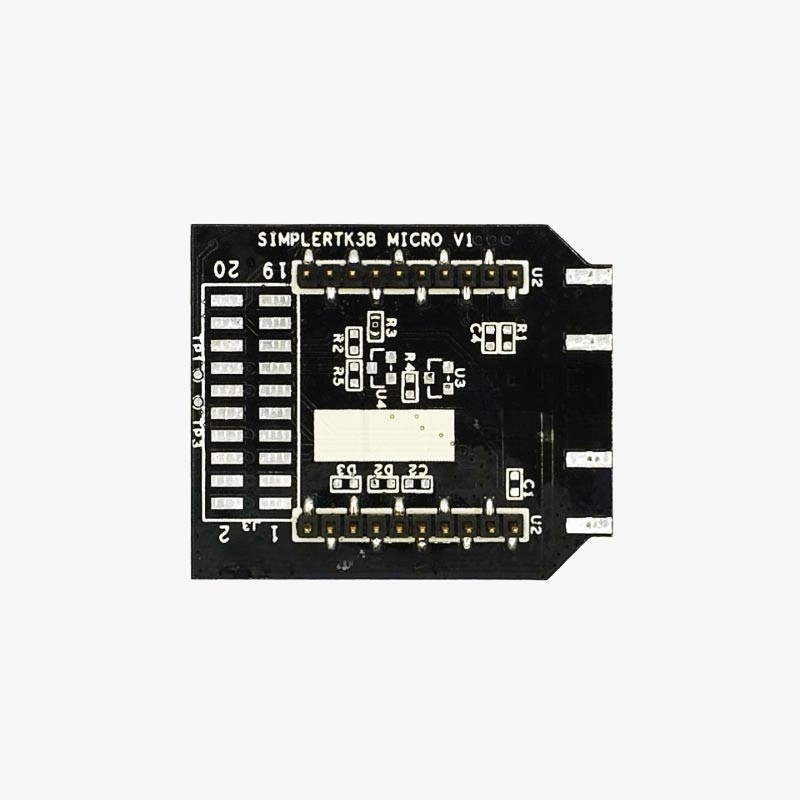

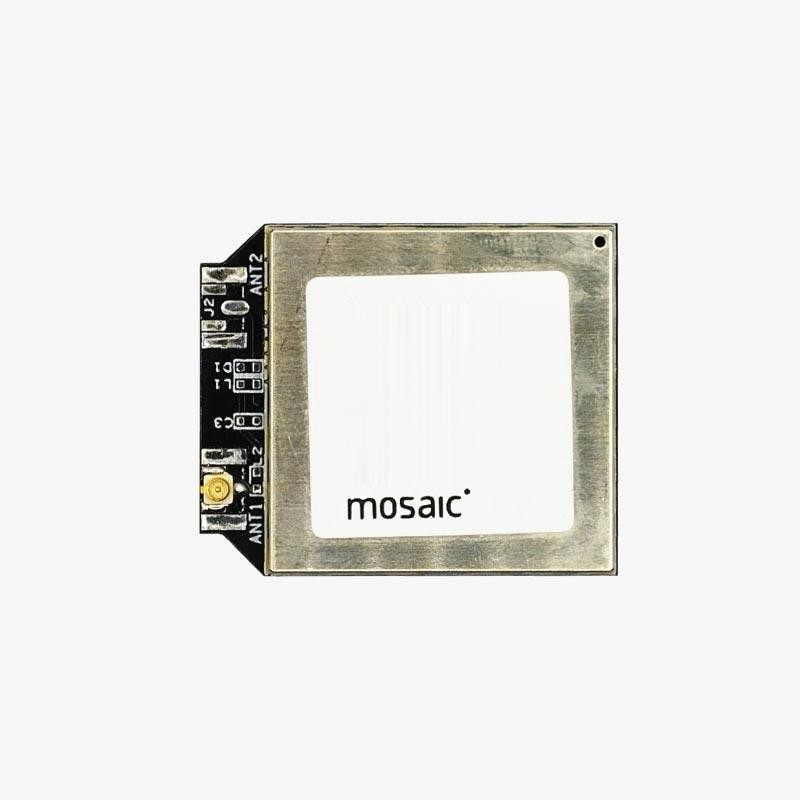

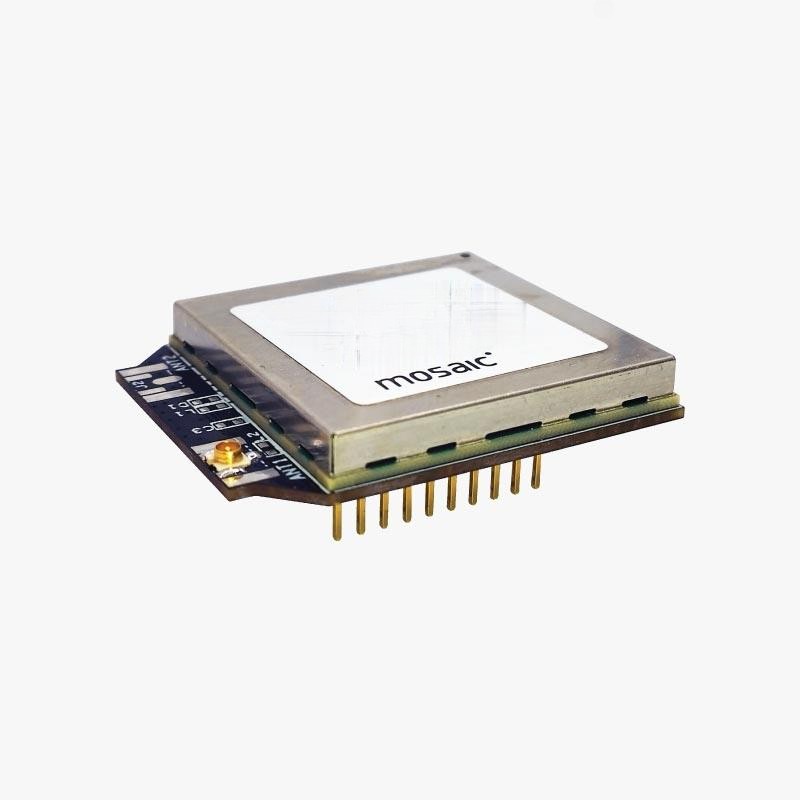

simpleRTK3B Micro

Product Description:

Description

The simpleRTK3B Micro revolutionizes your RTK project with its compact design, integrated RF connector, and exceptional availability. Powered by Septentrio's Mosaic-X5 and Mosaic-H modules, we have optimized the RF design and module integration, allowing you to devote your efforts to PCB design and application development.

Key Point:

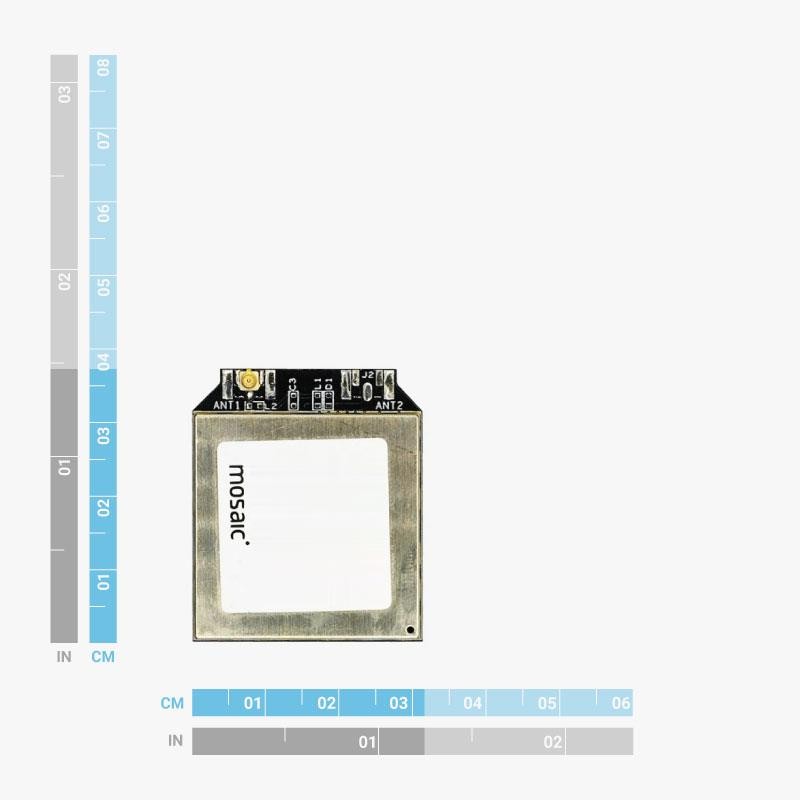

  • Ultra-compact Form Factor

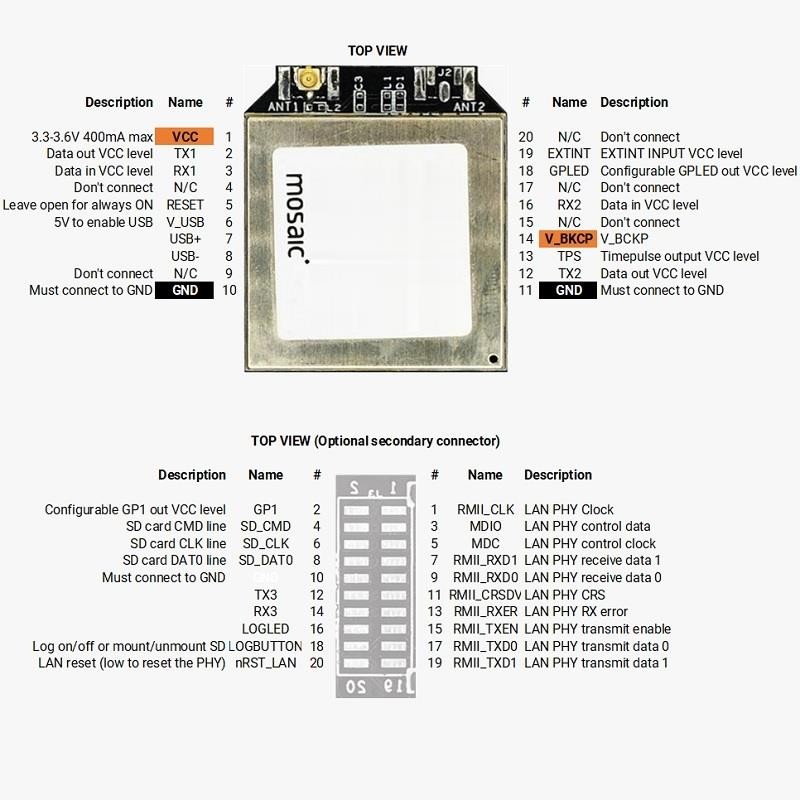

  • Extensive access to Mosaic pins
  • Reusability: Easily unmount from previous PCBs to reuse the costly GPS module for new designs
  • Efficient PCB Space Utilization: Place other components beneath the module to maximize board area
  • Effortless Soldering: Both hand and machine soldering options available
  • RF Expertise Not Required: All RF components are preinstalled; simply connect via uFL for pigtail or long SMA for direct panel mounting
  • Volume Discounts Available: Bulk pricing starts at 50 units
  • Product Codes:
  • AS-RTK3B-MICRO-MX-L125UFLEXT-00
  • AS-RTK3B-MICRO-MX-L125UFLSTD-00


Specifications

Mosaic-X5 features


  • Millimeter level precision



  1. <1cm with a base station up to 35km
  2. <1cm with NTRIP up to 35km
  3. <1.2m in standalone mode
  4. <0.6m standalone with SBAS coverage



  • Update rate



  1. Default: 1Hz
  2. With maximum performance: up to 100Hz



  • Multi band: L1, L2 and L5 support, 448 hardware channels
  • Multifrequency and Multiconstellation:



  1. GPS: L1C/A L1PY L2C L2P L5
  2. GLONASS: L1CA L2CA L2P L3 CDMA
  3. Galileo: E1 E5a E5b E5 AltBloc E6
  4. BeiDou: B1I B1C B2a B2I B3
  5. QZSS:  L1C/A L2C L5
  6. Navic: L5
  7. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1 L5)



  • Start-up times:



  1. Cold start: <45s
  2. Warm start: <20s
  3. Re-acquisition: 1s



  • Protocols:



  1. Septentrio Binary Format (SBF)
  2. NMEA 0183, v2.3, v3.03, v4.0
  3. RINEX v2.x, v3.x
  4. RTCM v2.x, v3.x (MSM included)
  5. CMR v2.0 (out/in), CMR+ (input only)



  • Interfaces (check product documentation to verify which are available):



  1. USB
  2. UART
  3. XBee
  4. Timepulse
  5. Event



  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS


Mosaic-H features


  • Millimeter level precision



  1. <1cm with a base station up to 35km
  2. <1cm with NTRIP up to 35km
  3. <1.2m in standalone mode
  4. <0.6m standalone with SBAS coverage



  • GNSS attitude accuracy



  1. 1m antenna separation: 0.15deg heading, 0.25deg pitch/roll
  2. 5m antenna separation: 0.03deg heading, 0.05deg pitch/roll



  • Update rate



  1. Default: 1Hz
  2. Measurements only: up to 100Hz
  3. Standalone, SBAS, DGPS + attitude: up to 50Hz
  4. RTK+attitude: up to 20Hz



  • Multi band: L1, L2 and E5b support, 448 hardware channels
  • Multifrequency and Multiconstellation:



  1. GPS: L1 L2
  2. GLONASS: L1 L2
  3. Galileo: E1 E5b
  4. BeiDou: B1 B2
  5. QZSS:  L1 L2
  6. SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)



  • Start-up times:
  1. Cold start: <45s
  2. Warm start: <20s
  3. Re-acquisition: 1s
  • Protocols:



  1. Septentrio Binary Format (SBF)
  2. NMEA 0183, v2.3, v3.03, v4.0
  3. RINEX v2.x, v3.x
  4. RTCM v2.x, v3.x (MSM included)
  5. CMR v2.0 (out/in), CMR+ (input only)



  • Interfaces (check product documentation to verify which are available):



  1. USB
  2. UART
  3. XBee
  4. Timepulse
  5. Event


  • Base and Rover functionality
  • Operating temperature Range: -40 to +85deg
  • Certification: CE, WEEE, ISO 9001-2015
  • Documentation: RED, RoHS
