TW7972 / TW3972

 DOWNLOAD

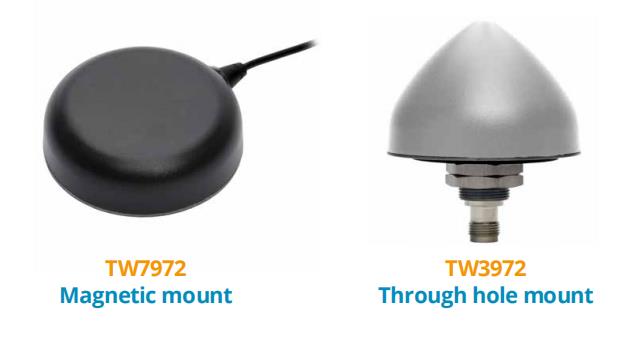

The TW7972 and TW3972 are lightweight highprecision antennas supporting triple-band GPS/ QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/ E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, including  the satellite-based augmentation system (SBAS)  available in the region of operation [WAAS (North  America), EGNOS (Europe), MSAS (Japan), or  GAGAN (India)], plus L-band correction services  coverage, and are especially designed for  precision triple-frequency positioning. TW7972  is magnetic mount and TW3972 is through hole  mount.

These antennas provide superior multipath rejection  and axial ratio, a linear phase response, and tight  Phase Centre Variation (PCV), while protecting  against intermodulation and saturation caused by  high-level LTE 700 Mhz signals.

These antennas are ideal for precision agriculture,  autonomous vehicle tracking and guidance, and other  applications where precision matters.


KEY FEATURES

* Multi-constellation tracking: GPS, Galileo, GLONASS, BeiDou, NavIC and QZSS

* Reception of Inmarsat L-Band signals compatible with correction services

* Triple-band GNSS antenna

* Magnetic mount IP67 for TW7972

* Through hole mount IP69K for TW3972


FEATURES

  Signals

L-Band (MSS)

GPS                                        L1, L2, L5

GLONASS                              L1, L2, L3

Beidou                                        B1, B2

Galileo                              E1, E5a, E5b

SBAS                                           L1, L5

NavIC                                               L5

QZSS                                     L1, L2, L5


Frequencies

1539-1606 MHz

1160-1255 MHz


Polarisation                                 RHCP


Axial Ratio                          < 2dB typ.


Radiation Coverage

 Zenith                             4.0 dBic typ.


Amplifier

Gain                                    32 dB typ.

Noise Figure                       2.5 dB typ.

Input Voltage           +2.5 to +16 VDC

Current                             24 mA (typ)

Impedance                                  50 Ω

VSWR                                ≤ 1.5:1 typ.


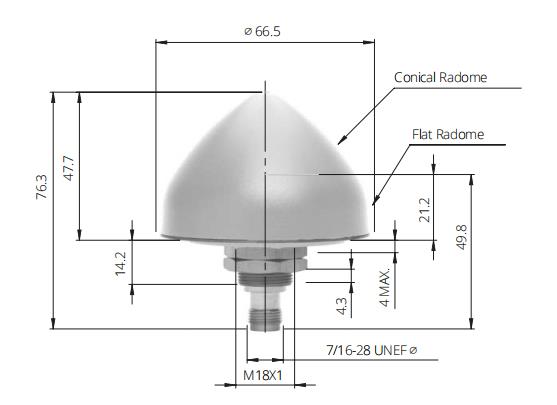

Physical and Environmental

Radome / Enclosure       EXL9330, Base: Zamak

Weight                        180g (TW7972)

                                    185g (TW3972)

Temperature           -40°C to + 105°C (TW7972)

Temperature             -70°C to + 85°C (TW3972)

Certification           CE, FCC, RED, RoHS and WEEE

IP rating                       IP67 (TW7972)

                                   IP69K (TW3972)

Vibration            MIL-STD-810E Method 514.5

Shock and Drop       MIL-STD-810G Method 516.6
