AsteRx-U3 Marine

 DOWNLOAD

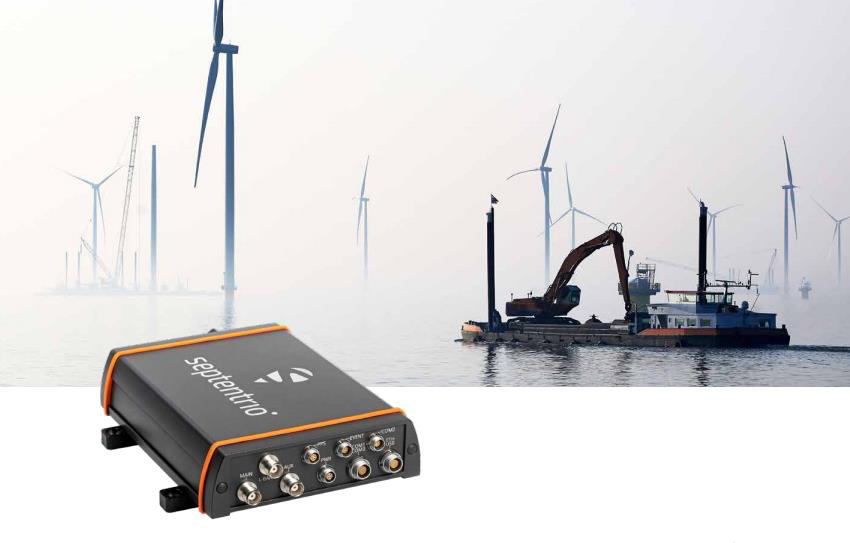

The AsteRx-U3 Marine is designed for marine survey  and construction users. It is a multi-frequency  GNSS receiver offering precise GNSS positioning  and heading with enhanced Iridium and Inmarsat  uplink interference mitigation.


KEY FEATURES

* Full-constellation, triple-frequency satellite tracking on both antennas

* Sub-degree GNSS heading & pitch or heading & roll

* Centimetre-level (RTK) and sub decimetre-level (PPP) position accuracy

* L-band reception, robust against Iridium and  Inmarsat uplink interference

* Support for FUGRO Marinestar corrections

* Septentrio GNSS+ algorithms for reliable performance

* Integrated UHF radio, cellular modem, Bluetooth and Wi-Fi


BENEFITS

Consistently accurate now and into the future

The AsteRx-U3 Marine is the most advanced integrated  multi-constellation dual-antenna receiver from Septentrio.  Its multi-frequency engine can track signals from all Global  Navigation Satellite System (GNSS) constellations: GPS,  GLONASS, Galileo, BeiDou, NavIC and QZSS – on both  antennas. This guarantees you reliable and accurate GNSS  positioning now and into the future.


Centimetre accuracy

Septentrio’s 20 years of experience in the GNSS industry  ensures that the AsteRx-U3 Marine offers you the highest  possible accuracy, down to a centimetre. LOCK+ technology  maintains tracking during heavy vibration and IONO+  ensures position accuracy even under periods of elevated  ionospheric activity. The AsteRx-U3 Marine offers the very  latest in advanced interference mitigation technology AIM+,  which filters out ambient intentional and unintentional  RF interference and allows this receiver to be resilient to  interference from Iridium and Inmarsat uplinks.


Any device, any platform

Use any device with a web browser to operate the AsteRx-U3  Marine without any special configuration software via the  Web interface accessible over Ethernet, Wi-Fi or a USB connections.


FEATURES

GNSS technology

544 Hardware channels for simultaneous  tracking of most visible signals:

* GPS: L1 C/A, L1C1 , L2C, L2 P(Y), L5

* GLONASS: L1 C/A, L2 C/A, L3, L2P

* BeiDou: B1I, B1C, B2a, B2I, B3I

* Galileo: E1, E5a, E5b, E5 AltBOC

* QZSS: L1 C/A, L1C1 , L2C, L5

* NavIC: L5

* SBAS: EGNOS, WAAS, GAGAN, MSAS, SDCM


Septentrio’s patented GNSS+ technologies

„ AIM+ unique mitigation and monitoring  system against narrow and wideband  interference with spectrum analyser

„ IONO+ advanced scintillation mitigation

„ APME+ a posteriori multipath estimator for  code and phase multipath mitigation

„ LOCK+ superior tracking robustness under  heavy mechanical shocks or vibrations

„ RAIM+ Receiver Autonomous Integrity Monitoring

RTK (base and rover)

Integrated L-band receiver with dedicated  antenna input

Moving base

GNSS heading & pitch or heading & roll

16 GB internal memory

Support for FUGRO Marinestar PPP service2


Formats

Septentrio Binary Format (SBF), fully

documented with sample parsing tools

RTCM v2x and 3x (MSM included)

CMR 2.0 and CMR+ (CMR+ input only)

NMEA 0183, v3.01, v4.0

UHF: Satel, Trimtalk (450S) Pacific

Crest (GMSK, 4FSK, FST)



Connectivity

3 Hi-speed serial ports (RS232)

Ethernet port (TCP/IP and UDP)

High-speed USB

1 Event marker

xPPS output (max. 100 Hz)

Bluetooth3  (2.1 + EDR/4.0)

WiFi3  (802.11 b/g/n)

UHF3  (410-475 MHz)

Cellular modem3 : LTE CAT4

4G LTE CAT4 (B1, B3, B5, B7, B8, B20)

3G UMTS/HSDPA/HSUPA (850/900/1900/2100)

2G GSM/GPRS/EDGE (850/900/1800/1900)


PERFORMANCE

Position accuracy 4,5

                                  Horizontal             Vertical

Standalone                       1.2 m                1.9 m

SBAS                                0.6 m                 0.8 m

DGNSS                             0.4 m                0.7 m


RTK performance 4,5,6,7

Horizontal accuracy               0.6 cm + 0.5 ppm

Vertical accuracy                          1 cm + 1 ppm

Initialisation                                                  7 s


GNSS attitude accuracy 4,5

Antenna separation       Heading        Pitch/Roll

                        1 m              0.15°               0.25°

                        5 m              0.03°               0.05°


Velocity accuracy 4,5                             0.03 m/s


Maximum update rate

Position                                                   100 Hz

Position and attitude                               50 Hz

Measurements                                       100 Hz


Latency 8                                                <20 ms


Time accuracy

xPPS out9                                                  10 ns

Event accuracy                                      < 20 ns


Time to first fix

Cold start10                                              < 45 s

Warm start11                                            < 20 s

Re-acquisition                                        avg. 1 s


Tracking performance (C/N0 threshold) 10

Tracking                                               20 dB-Hz

Acquisition                                           33 dB-Hz


PHYSICAL AND ENVIRONMENTAL

 Size                                      157 x 245 x 45mm

Weight                                                     1.5 kg

Input voltage                                     9-36 VDC

Power consumption                         8 W typical

Operating temperature           -30° C to +65° C

Storage temperature              -40° C to +75° C

Humidity                      IEC60721-3-5, Class 5K2

Dust                      MIL-STD-810H, Method 510.7, Procedure I

Shock                 MIL-STD-810H, Method 516.8, Procedure I/II

Vibration                 MIL-STD-810H, Method 514.8, Procedure I

Corrosion                  IEC60068-2-52, Method 2



Connectors

Antennas                                         TNC female

Power                                 LEMO 4 pins female

USB/ETH                          LEMO 16 pins female

PPS OUT                            LEMO 5 pins female

Serial 2                               LEMO 9 pins female

Serial 1 & 3                                 LEMO 14 pins

Events/GPIO                       LEMO 7 pins female



Antenna LNA power output

Output voltage             User selectable 3.3V/5V

Maximum current                                  150 mA



Certification

IP68, RoHS, WEEE, CE, ISO 9001-2015, UKCA
